An effective solution for keeping shell and tube heat exchanger clean.
ECOMax-HE ® uses sponge balls to keep heat exchanger tubes clean. These sponge balls are pumped almost simultaneously into the heat exchanger tube sheet. This enables the sponge balls to pass through tubes and clean the fouling and scales deposits within. The sponge balls are collected at ball trap, and sent back to the ball collector with the help of collection pump. The entire process is a speedy batch operation which is automatically controlled by PLC and occurs at predefined intervals. ECOMax-HE ®
• Results in up to 20% energy saving in HVAC chillers
• Increases cooling capacity of HVAC Chillers
• Improves Condenser tube life
• Improves Compressor Life
• Avoids costly shutdown and downtime
• Eliminates offline cleaning completely
• Offers very attractive ROI, usually less than 1 Year.
• Zero ball loss system, no balls can escape to cooling tower

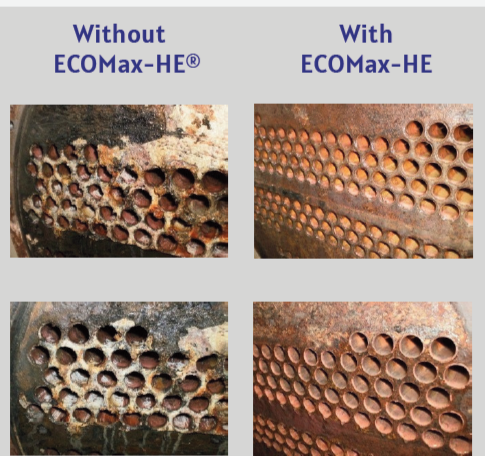

• Ensures 100% clean tubes
• Single System for Multiple Chillers even if the Chiller capacity is different
• Gives an alarm for Sponge Ball Replacement
• Automatically operates on a running chiller
• No water wastage from the system
• No mixing of CW inlet and outlet water during operation
• Negligible power consumption by the booster pumps
• Compact, smaller foot print
• Simultaneous injection cycle in one chiller and collection in another chiller is possible
• Low maintenance.
• Central Air Conditioning Systems
• Process Industries
• Industrial Refrigeration Systems.

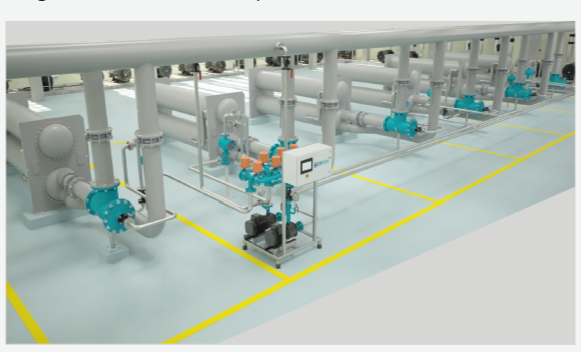

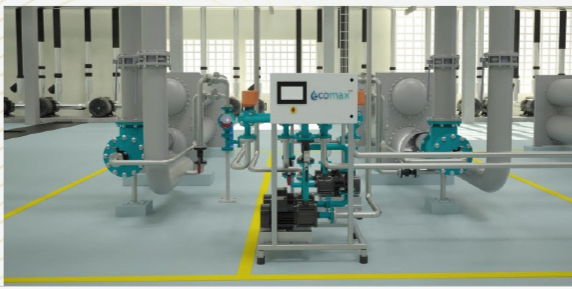

ECOMax-HE® Automatic Tube Cleaning System for HVAC
Electrolytic CT Water Treatment System

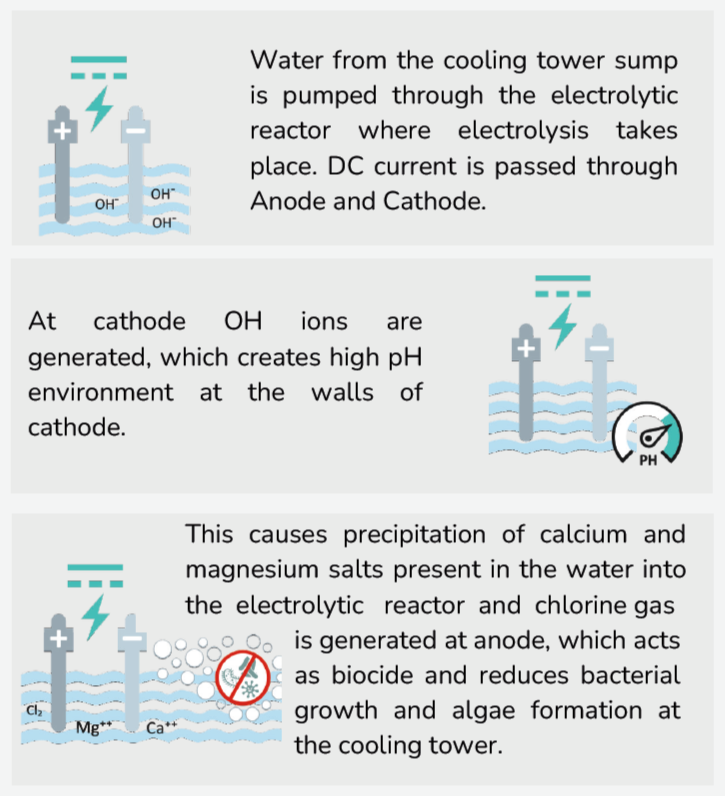

ECOMax-CT ® eliminates/reduces chemical dosing in the cooling tower. As the scales are removed physically into the electrolytic reactor, it is possible to operate cooling tower at higher levels of TDS and conductivity, resulting into reduction of Cooling Tower blow down water consumption. ECOMax- CT ® is designed to have long life and trouble free operation.
• Zero Chemicals
• Reduces blow down water usage up to 80%
• Reduces corrosion in condenser pipes
• Extends life of the Cooling Tower
• Blow down water can be used for gardening
• Results into Energy Saving in case of ZLD plants.

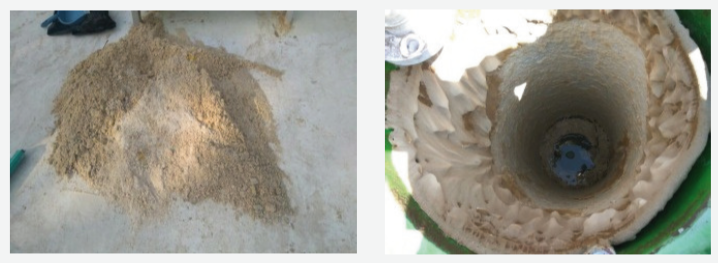

• Scale is removed from CW water and deposited in the electro-chemical reactor
• Fully automatic system including reactor cleaning
• Suitable filter with auto back-wash (optional)
• Automated blow down from the system
• No plant shutdown for system installation
• User Friendly Graphical User Interface (GUI)
• Compactness ensures smaller foot print
• Negligible power consumption by the booster pumps
• Almost negligible maintenance
• Green technology.

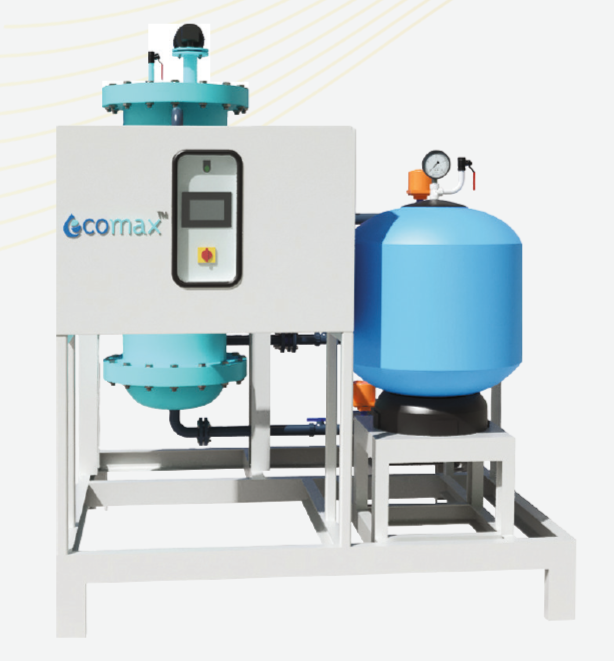

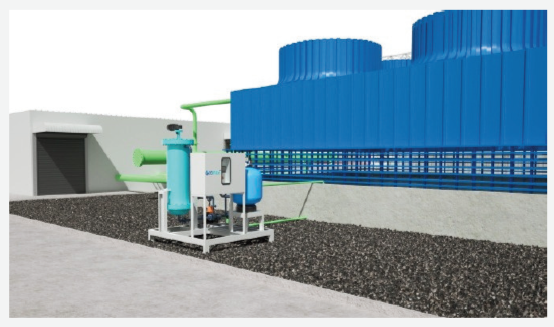

ECOMax-CT® – Electrolytic CT Water Treatment System
Online Condenser Tube Cleaning System

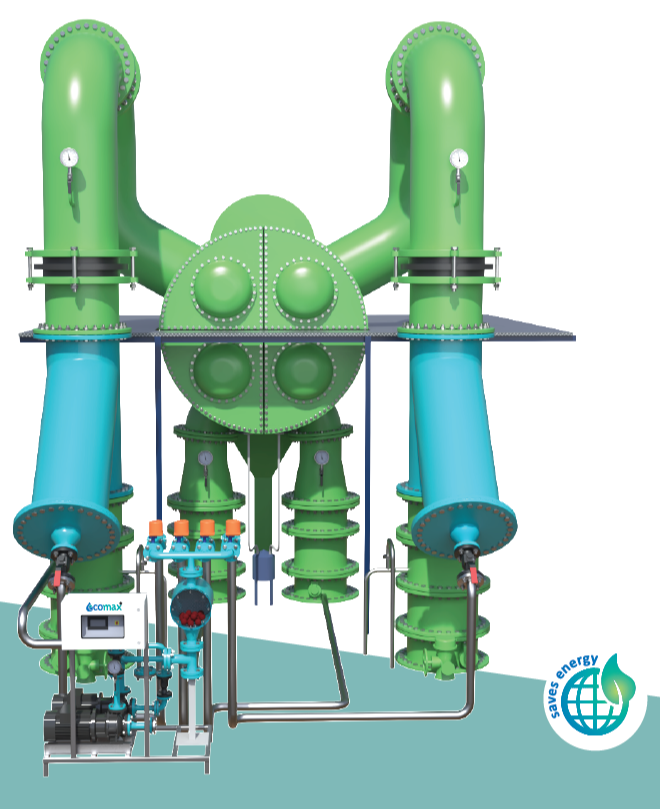

ECOMax-HE ® An effective solution for keeping Power Plant Condenser Tube Clean
ECOMax-HE ® uses sponge balls to keep heat exchanger tubes clean. These sponge balls are pumped almost simultaneously into the heat exchanger tube sheet. This enables the sponge balls to pass through tubes and clean the fouling and scales deposits within. The sponge balls are collected at ball trap, and sent back to the ball collector with the help of collection pump. The entire process is a speedy batch operation which is automatically controlled by PLC and occurs at predefined intervals. ECOMax-HE ® is maintenance free and designed to have long life and trouble free operation.
• Results in upto 5% power output increase in Power Plants
• Reduces Specific Steam Consumption
• Improves Condenser tube life
• Avoids costly shutdown and downtime
• Eliminates offline cleaning
• Offers very attractive ROI, usually less than 1 Year.
• Separate Pump for Ball Injection & Separate Pump for Ball Collection for better reliability
• Single System for Multiple Condensers
• Fully automatic, no manual intervention required
• No water wastage from the system
• Online Cleaning on continuous basis, no need of chiller unloading
• Zero ball loss system, balls can't escape to cooling tower
• Ensures 100% clean tubes
• Smart System, gives an alarm for Sponge Ball Replacement
• Touch screen Multi Colour HMI
• Minimal pressure drop in the Ball Trap
• Negligible power consumption
• Cleaning Sponge Balls would never be in contact with pump impeller
• Sight glass on the ball collector facilitates easy counting & monitoring of sponge balls
• Green Technology.
• Central Air Conditioning Systems
• Power Plants
• Process Industries
• Industrial Refrigeration Systems

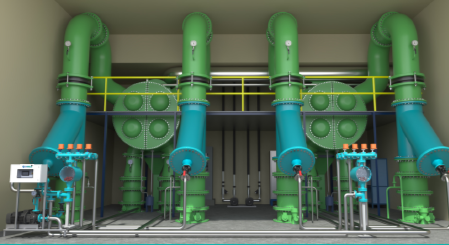

ECOMax-HE® Online Condenser Tube Cleaning System for Power Plants
